Motec PDM15 Flying Wiring Loom

MoTeC PDM15 Motorsport Wiring Loom

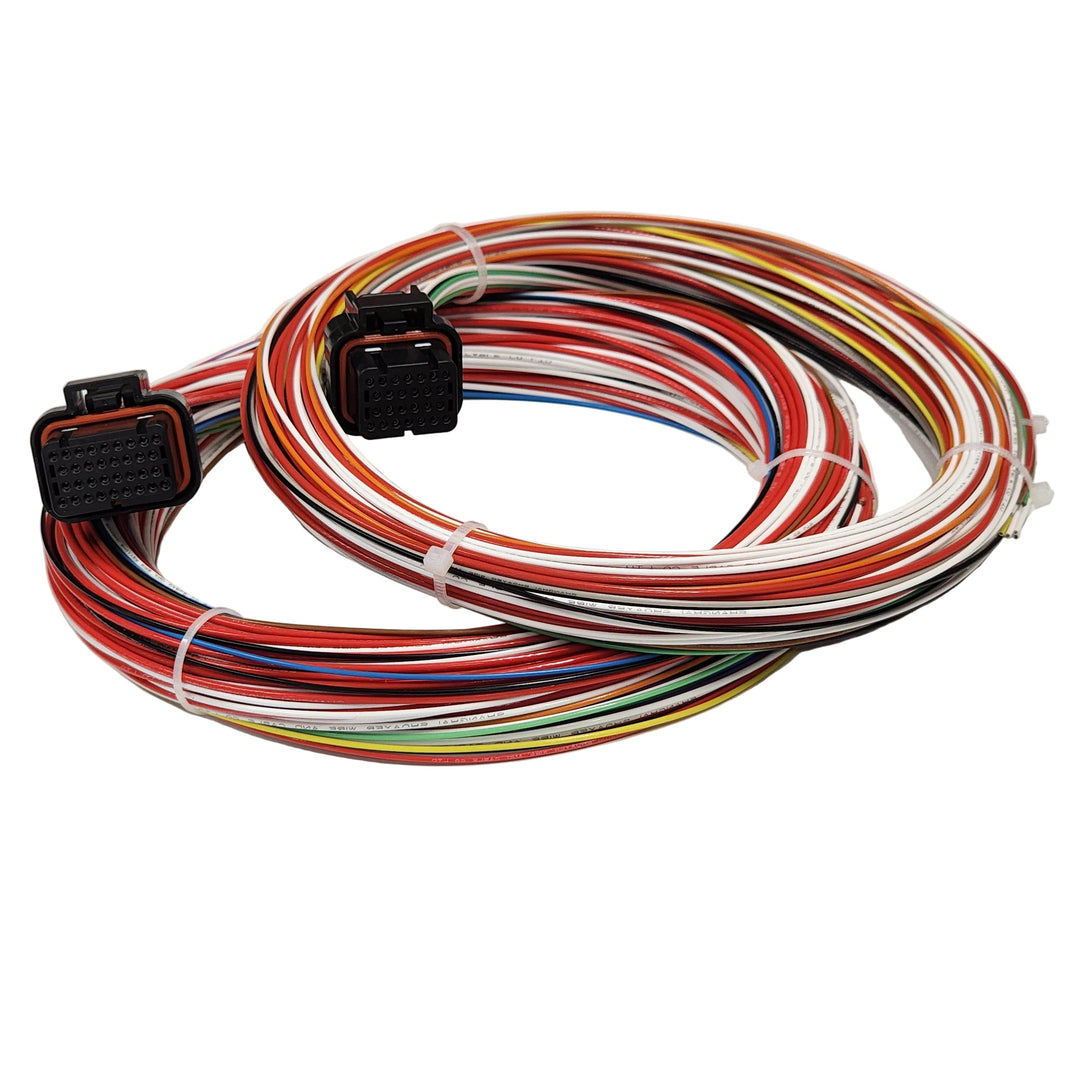

Build a robust, professional electrical system for your MoTeC PDM15 Power Distribution Module with this premium, hand-built motorsport wiring loom. Engineered exclusively for the MoTeC PDM15, this harness uses high-performance MIL-W-22759/16 ETFE wire — the aerospace/motorsport-grade standard trusted for extreme conditions.

Ideal for race cars, engine conversions, or high-end performance vehicles where clean power distribution, reduced weight, and resistance to heat, vibration, fuels, and chemicals are critical. Replace messy relay/fuse panels with a reliable, programmable PDM setup — this loom provides the perfect foundation without compromises.

Key Features:

• MoTeC PDM15 Specific Design — Fully pinned to match the PDM15's exact configuration (1 x 34-pin + 1 x 26-pin Tyco waterproof connectors, standard keying, plus provisions for the M6 power stud). Every circuit is correctly allocated for power inputs, battery/ground connections, 15 outputs (8x 20A + 7x 8A), 16 switch/digital inputs, CAN bus, diagnostics, and more — no generic pinouts or improvisation.
• Motorsport-Grade ETFE Wiring (MIL-W-22759/16) — Thin-wall, lightweight insulation delivering superior performance:
  • Exceptional resistance to high temperatures, fuels, oils, and automotive chemicals
  • High durability against vibration and constant flexing
  • Reduced bulk for cleaner, lower-weight installations
  • Long-term reliability with minimal insulation breakdown risk
• 2.5/5 Metre Length — Versatile reach for most vehicle layouts, allowing tidy routing to battery, switches, accessories, lights, pumps, fans, ECUs, and other loads.
• Unterminated (Flying Lead) Configuration — Full flexibility for custom output routing, switch inputs, CAN integration, or vehicle-specific needs. Includes a downloadable pin placement / colour-coded wire identification sheet for straightforward installation.
• Hand-Built Quality — Precision assembled, fully quality-checked before dispatch. Includes genuine MoTeC PDM15 mating connector(s) pre-attached.

What's Included:

• Pre-wired ETFE (MIL-W-22759/16) loom
• MoTeC PDM15 connector(s) (34-way + 26-way waterproof Tyco)
• Wire identification / pinout reference sheet (downloadable)
• Built-to-order and inspected for quality

Not Included:

• PDM15 module, battery cables to M6 stud, sensors/switches, loads (e.g., pumps, lights), or termination components (crimps, boots, etc.)
• Custom terminations (available on request — discuss prior to ordering for modified lengths, specific connectors, fused outputs, or added provisions)

Compatibility:

• Designed specifically for the MoTeC PDM15 Power Distribution Module (15 outputs, 16 inputs, CAN-enabled).
• Suited for integration with MoTeC ECUs (e.g., M1 series like M130/M150), standalone use, or hybrid setups requiring programmable power control.
• Perfect for motorsport applications needing over-current/short-circuit protection, diagnostics via CAN, and flexible output configuration.

Stock & Ordering Information: This loom is built to order for the highest quality and exact specifications. Lead times vary depending on current demand and component availability. If no stock is immediately available or for custom configurations (e.g., different lengths, terminated ends, additional circuits, or fused provisions), please contact us directly — we'll confirm availability, provide a quote, and discuss your requirements.

Legal Notice: MoTeC® is a registered trademark of MoTeC Pty Ltd. This product is an aftermarket wiring solution and is not affiliated with, endorsed by, or supplied by MoTeC Pty Ltd.
