Motec M150 Motorsport Wiring Loom

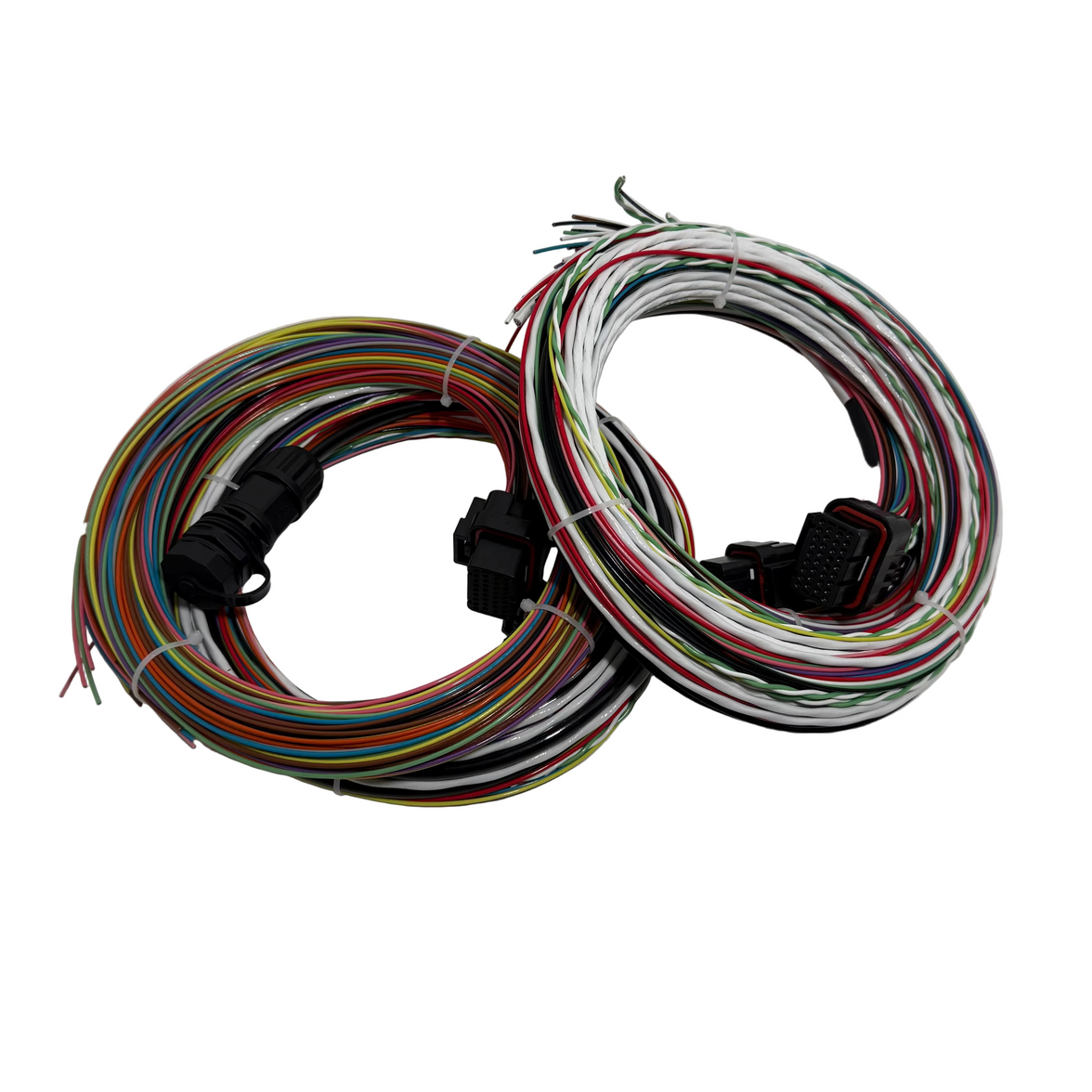

Motec M150 Flying Wiring Loom

Elevate your MoTeC M130-powered engine setup with this premium, hand-built motorsport wiring loom. Engineered exclusively for the MoTeC M150 Engine Control Unit, this harness uses high-performance MIL-W-22759/16 ETFE wire — the same grade trusted in aerospace and top-tier racing applications.

Perfect for race car builds, engine swaps, or high-end performance street machines where reliability under extreme heat, vibration, fuel exposure, and electrical interference is non-negotiable. Say goodbye to generic or automotive-grade compromises — this loom delivers a clean, precise, and future-proof electrical foundation.

Key Features:

• MoTeC M150 Specific Design — Fully pinned to match the M150's exact pinout (34-pin + 26-pin Tyco Superseal connectors, standard keying). Every wire is correctly allocated for power, grounds, sensors, injectors, ignition, half-bridge outputs, CAN bus, digital/analogue inputs, and more — no repurposed circuits or guesswork.
• Motorsport-Grade ETFE Wiring (MIL-W-22759/16) — Thin-wall, lightweight insulation with superior resistance to:
  • High temperatures
  • Fuels, oils, and automotive chemicals
  • Vibration and mechanical stress
  • Long-term degradation
• Unterminated (Flying Lead) Configuration — Maximum flexibility for custom sensor choices, CAN integration, relay setups, or unique engine configurations. Includes a downloadable pin placement / colour-coded wire identification sheet to simplify installation.

What's Included:

• Pre-wired ETFE (MIL-W-22759/16) loom
• MoTeC M130 ECU connector(s) (2x 34-way + 2x 26-way Tyco Superseal)
• Wire identification / pinout reference sheet (downloadable)


Not Included:

• ECU, sensors, actuators, relays, or termination components (crimps, boots, etc.)
• Custom terminations (available on request — discuss prior to ordering for modified lengths, specific connectors, or added provisions)

Compatibility:

• Designed specifically for the MoTeC M150 ECU (also compatible with similar M1-series units like M150 in some configurations — confirm pinout).
• Ideal for port-injection engines, DBW throttle, cam control and CAN bus applications.

Stock & Ordering Information:

This loom is built to order and lead times vary depending on current demand and component availability. Stock Made be available.

Legal Notice: MoTeC® is a registered trademark of MoTeC Pty Ltd. This product is an aftermarket wiring solution and is not affiliated with, endorsed by, or supplied by MoTeC Pty Ltd.
